Série PL
Enceintes haute performance pour Q-SYS

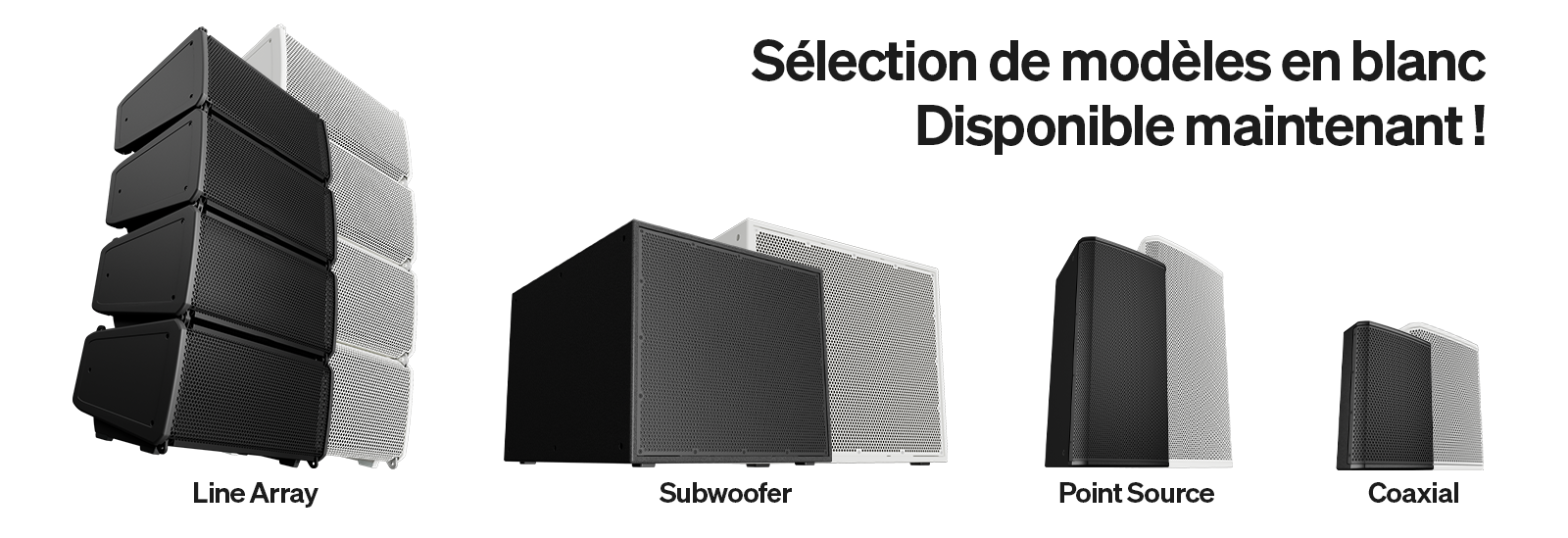

La Série PL Q-SYS est une gamme d’enceintes pour installations fixes très performantes, conçues pour apporter un son de qualité supérieure aux systèmes Q-SYS dans une très grande variété d'applications, notamment récréatives, en entreprise ou dans l'enseignement supérieur. La Série PL offre plusieurs formats (enceintes line array, point source et caisson de graves) vous permettant de concevoir l'expérience sonore optimale dans chaque espace. L'expérience audio sans faille des enceintes de la Série PL est complétée par la puissance et les performances assurées par la plate-forme Q-SYS : configuration simplifiée, modélisations d’enceintes personnalisées, puissance d’une grande fiabilité grâce aux amplificateurs en réseau Q-SYS, télémétrie avancée sans oublier un suivi et un contrôle personnalisables par l'utilisateur final.
Proposez le système adéquat à vos clients
Les enceintes de la Série PL Q-SYS apportent une multitude d'options afin de garantir la solution la plus appropriée dans les salles exigeant des performances audio élevées. Chaque modèle est doté d'un boîtier résistant aux intempéries (IP54), ce qui en fait le choix idéal pour les applications en intérieur ou sous abri en extérieur.
Contrôle et suivi complets pour les lieux récréatifs
La plate-forme Q-SYS offre un moteur de contrôle complet qui vous permet de déployer un niveau approprié de contrôle utilisateur intuitif et de visibilité du système pour chaque partie prenante du la salle. En parallèle, Q-SYS Reflect Enterprise Manager permet de suivre et de gérer à distance l'intégrité de votre système depuis n'importe où.
Une expérience Q-SYS sans accroc
Les enceintes haute performance de la Série PL font partie du catalogue complet de produits et systèmes Q-SYS
offrant une expérience audio, vidéo et de contrôle holistique dans l'ensemble de la salle,
des auditoriums ou amphithéâtres aux salles de spectacle ou de sport.
CHOISISSEZ UN MODÈLE
Line Array
| PL-LA8 | PL-LA12 | |
| Enclosure Configuration: | Bass Reflex, two-way passive/bi-amp line array loudspeaker | |
|---|---|---|
| Tranducers: | LF: 8 in (200 mm), 2 in (50 mm) voice coil, neodymium magnet HF: Compression driver, 1.75 in (44 mm) voice coil | LF: 12 in (320 mm), 2.5 in (64 mm) voice coil, neodymium magnet HF: 2x compression driver, 1.75 in (44 mm) voice coil |
| Coverage (horizontal x vertical): | 100° x 15° | 90° x 15° |
| System bandwidth (-10 dB with EQ) | 61 Hz-20 kHz (no subwoofer) | 53 Hz-20 kHz (no subwoofer) |
| System Sensitivity | 101.2 dB @ 1 W/1 m | 102.3 dB @ 1 W/1 m |
| Max SPL* (continuous) | 132.5 dB @ 1 W/1 m | 132.5 dB @ 1 W/1 m |
| System Power Rating | 46 Vrms, continuous 250 W @ 8 Ω | 49 Vrms, continuous 300 W @ 8 Ω |
| Connectors | 2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles | |
| Recommended Amplifiers | Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 8K4 up to two (2) loudspeakers per channel on CX-Q 4K4 | |
| Rigging angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 | |
| Enclosure Material: | Impact-resistant ABS | |
| Enclosure Color: | Black (RAL 9011) | |
| Weatherization | IP54 Stainless screws UV and Corrosion treated grille Aluminum Rigging Hydrophobic Stainless Steel Mesh behind grille Input cup (IP65) sealing with gland | |
| Dimensions | 10.7 x 20.1 x 13.7 in (272 x 512 x 349 mm) | 15.4 x 24.4 x 15.8 in (392 x 620 x 381 mm) |
| Weight | 30 lb (13.5 kg) | 47 lbs (21.5 kg) |
| ||
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Point Source
| PL-DC24 | PL-DC26 | PL-DC8 | PL-DC12 | |
| Tranducers: | LF: 2x 4 in (102 mm), 1.3 in (33 mm) voice coil, neodymium HF: Compression driver, 1 in (25 mm) voice coil | LF: 2x 6 in (170 mm), 1.7 in (44 mm) voice coil, neodymium HF: Compression driver, 1.75 in (44 mm) voice coil | LF: 8in (200 mm), 2 in (50 mm) voice coil, neodymium HF: Compression driver, 1.75in (44 mm) voice coil | LF: 12in (320 mm), 3 in (75 mm) voice coil, neodymium HF: Compression driver, 3 in (75 mm) voice coil |
|---|---|---|---|---|
| Enclosure Configuration: | Two-way, passive point source loudspaker in bass reflex enclosure | |||
| Coverage (horizontal x vertical): | 110° x 50° | Symmetrical: 120° x 50°, 90° x 50° Asymmetrical: 105° x 50° (Reconfigurable half horn assemblies included) | Symmetrical: 90° x 50°, 70° x 50°, 110° x 50° Asymmetrical: 100° x 50°, 90° x 50°, 80° x 50° (Reconfigurable half horn assemblies included) | |
| System Sensitivity | 97.3 dB @ 1 W/1 m | 102.2 dB @ 1 W/1 m | 99.3 dB @ 1 W/1 m | 102 dB @ 1 W/1 m |
| Max SPL* (continuous) | 114 dB | 121 dB | 118 dB | 124 dB |
| Enclosure Material: | Exterior plywood | |||
| Enclosure Color: | Black (RAL 9011) | |||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | |||
| Recommended Amplifiers | Q-SYS CX-Q 4K4 (up to 4 per ch) Q-SYS CX-Q 2K4 (up to 2 per ch) | Q-SYS CX-Q 8K4 (up to 4 per ch) Q-SYS CX-Q 4K4 (up to 3 per ch) Q-SYS CX-Q 2K4 (up to 2 per ch) | Q-SYS CX-Q 8K4 (up to 4 per ch) Q-SYS CX-Q 4K4 (up to 3 per ch) | |
| ||||
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Caisson de graves
| PL-SUB10 | PL-SUB12 | PL-SUB15 | PL-SUB18 | |
| Tranducers | LF: 10 in (250 mm), 3 in (75 mm) voice coil | LF: 12 in (300 mm), 3 in (75 mm) voice coil | LF: 15 in (380 mm), 4 in (100 mm) voice coil | LF: 18 in (460 mm), 4 in (100 mm) voice coil |
| Enclosure Configuration | Passive subwoofer in bass reflex enclosure | |||
| Coverage | Omnidirectional | Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units | ||
| System bandwidth (-10 dB with EQ) | 43-100 Hz 43-110 Hz 43-140 Hz | 40-100 Hz 40-110 Hz 40-140 Hz | 38-100 Hz 38-110 Hz 38-140 Hz | 34-100 Hz 34-110 Hz 34-140 Hz |
| System Sensitivity | 90 dB 1W/1m | 93 dB 1W/1 m | 97.5 dB 1 W/1m | 96 dB 1 W/1 m |
| Max SPL* (continuous) | 132 dB | 137 dB | 139 dB | 140 dB |
| Enclosure Material | Exterior plywood | |||
| Enclosure Color | Black (RAL 9011) | |||
| Connectors | 2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles | |||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | |||
| Recommended Amplifiers | Q-SYS CX-Q 8K4 (up to 2 per ch) | Q-SYS CX-Q 8K4 (up to 1 per ch) | ||
| Dimensions | 10.8 x 16.7 x 20 in (275 x 425 x 510 mm) | 12.7 x 20.6 x 24 in (325 x 525 x 610 mm) | 14.7 x 23.5 x 27.1 in (375 x 598 x 690 mm) | 20.9 x 24.4 x 28.7 (531 x 620 x 730 mm) |
| Weight | 41.8 lb (18.96 kg) | 53.1 lb (24.1 kg) | 80 lb (36.3 kg) | 102.2 lb (46.3 kg) |
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Coaxial
| PL-CA5 | PL-CA6 | PL-CA8 | PL-CA12 | PL-CA15 | |
| Enclosure Configuration | Two-way, full-range coaxial loudspeaker in bass reflex enclosure | ||||
| Tranducers | LF: 5 in (127mm), 1.5 in (38 mm) voice coil Coaxial tweeter: 1 in (25mm) voice coil | LF: 6 in (170 mm), 1.75 in (44.5 mm) voice coil Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil | LF: 8 in (200 mm), 2 in (50.8 mm) voice coil, neodymium Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil | LF: 12 in (320 mm), 3 in (72.6 mm) voice coil, neodymium Coaxial HF: compression driver, 3 in (76.2 mm) voice coil | LF: 15 in (380 mm), 3 in (72.6 mm) voice coil, neodymium Coaxial HF: compression driver, 3 in (76.2 mm) voice coil |
| Coverage | 115° conical DMT | 115° conical DMT | 110° conical DMT | 80° conical DMT | 80° conical DMT |
| System Bandwidth (-10 dB with EQ) | 76 Hz - 20 kHz (no subwoofer) | 61 Hz - 20 kHz (no subwoofer) | 59 Hz -20 kHz (no subwoofer) | 38 Hz -20 kHz (no subwoofer) | 37 Hz -20 kHz (no subwoofer) |
| System Sensitivity | 88 dB 1W/1m | 93 dB 1W/1m | 97 dB 1W/1m | 102 dB 1W/1m | 100 dB 1W/1m |
| Max SPL* (continuous) | 107 dB | 111 dB | 115 dB (passive) 116 dB (bi-amp) | 119 dB (passive) 120.5 dB (bi-amp) | 120 dB (passive) 122 dB (bi-amp) |
| Connectors | 1x Euroblock: Solid wire 14 AWG, 4 poles | 1x Euroblock: Solid wire 14 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles |
| Recommended Amplifiers | CX-Q 8K4 (up to 8 per ch) CX-Q 4K4 (up to 4 per ch) CX-Q 2K4 (up to 2 per ch) | CX-Q 8K4 (up to 4 per ch) CX-Q 4K4 (up to 3 per ch) CX-Q 2K4 (up to 2 per ch) | CX-Q 8K4 (up to 4 per ch) CX-Q 4K4 (up to 2 per ch) CX-Q 2K4 (up to 1 per ch) | CX-Q 8K4 (up to 2 per ch) CX-Q 4K4 (up to 1 per ch) | CX-Q 8K4 (up to 2 per ch) CX-Q 4K4 (up to 1 per ch) |
| Enclosure Material: | Exterior plywood | ||||
| Enclosure Color: | Black (RAL 9011) | ||||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | ||||
| Dimensions | 7.1 x 7.9 x 7.1 in (181 x 200 x 180 mm) | 12.5 x 8.7 x 7.1 in (316 x 220 x 180.5 mm) | 16.1 x 11 x 9.3 in (410 x 280 x 236 mm) | 23.5 x 15.7 x 13.8 in (597 x 400 x 350.4 mm) | 26 x 17.3 x 15.2 in (660 x 440x 386.5 mm) |
| Weight | 8.8 lb (4 kg) | 13.4 lb (6.1 kg) | 24 lb (10.9 kg) | 44 lb (20 kg) | 50.7 lb (23 kg) |
| Optional Accessories (sold separately) | PL-CA5-YM horizontal yoke mount PL-DC24-FM flush mount (ceiling or wall) | PL-CA6-YM horizontal yoke mount | PL-CA8-YM horizontal yoke mount | PL-CA12-YM horizontal yoke mount PL-CA12-SL Link to suspend PL-CA12 with PL-SUB15 | PL-CA15-YM horizontal yoke mount |
