Serie PL
Altavoces de rendimiento para Q-SYS

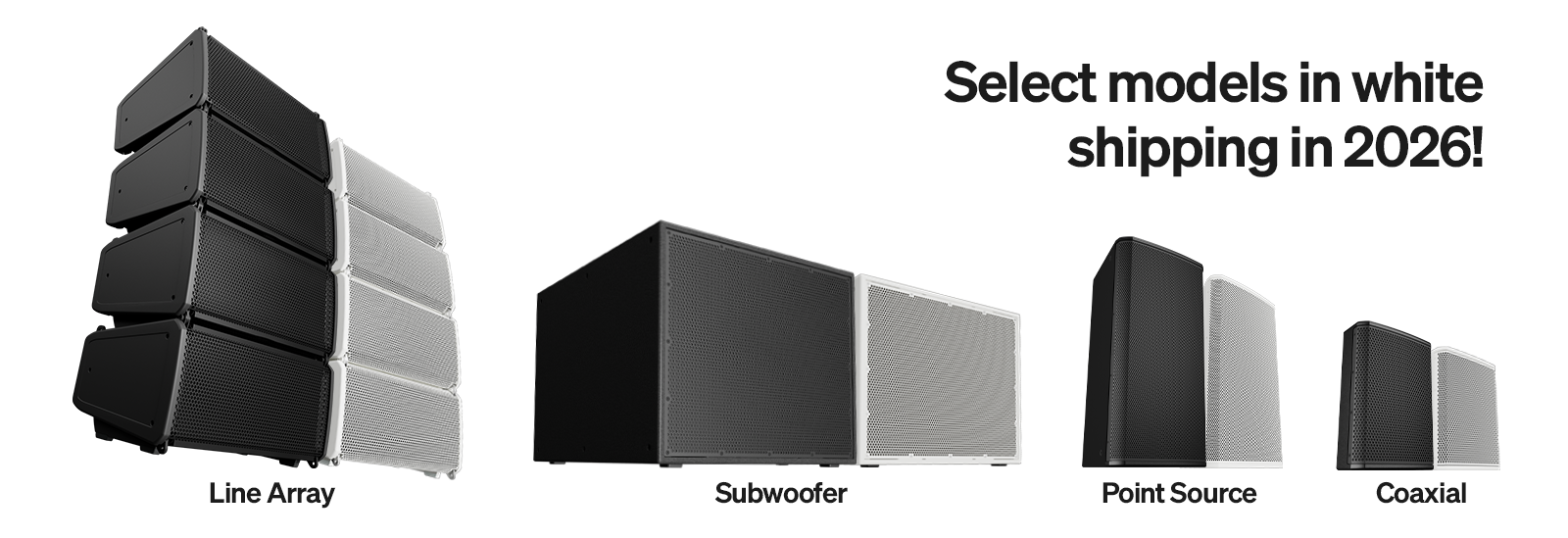

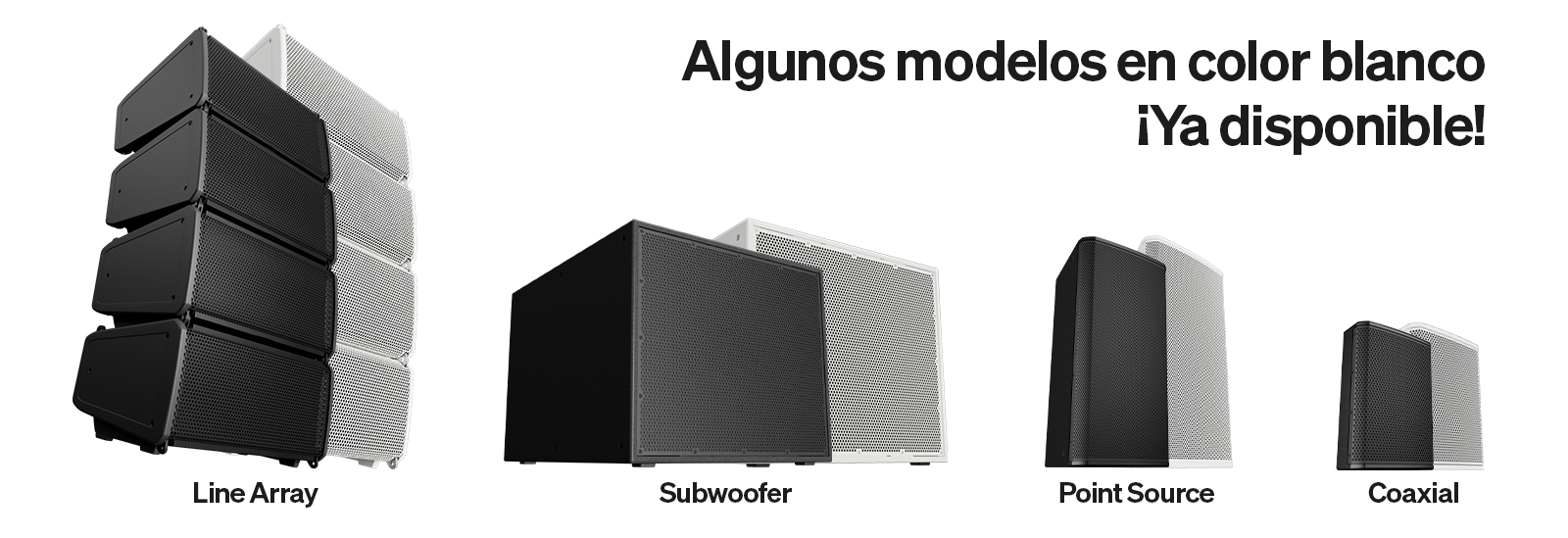

La Serie PL de Q-SYS es una gama de altavoces de alto desempeño para instalaciones, diseñados con el fin de ofrecer un sonido premium a los sistemas Q-SYS en una amplia variedad de aplicaciones del ámbito del entretenimiento, empresarial o en entornos de educación superior. La Serie PL brinda una amplia variedad de formatos (arreglo lineal, fuente puntual y subwoofer) que permiten adaptarlos a diversos espacios. La experiencia de audio que ofrecen los altavoces de la Serie PL se completa con la potencia y el rendimiento de la plataforma Q-SYS, que proporciona una instalación simplificada y perfiles de altavoces personalizados, potencia fiable con los amplificadores en red, telemetría avanzada, monitoreo y control personalizable de usuario.
Ofrezca el sistema ideal a sus clientes
Los altavoces de la Serie PL proporcionan abundantes opciones para lograr siempre la solución correcta en cualquier lugar del espacio que precise audio de alto rendimiento. Cada modelo cuenta con una caja acústica (IP54) tratada y reforzada para soportar las inclemencias del tiempo, por lo que es la elección ideal en aplicaciones interiores o exteriores protegidas.
Control y monitoreo totales en espacios de entretenimiento
La plataforma Q-SYS ofrece un motor de control con todas las características que le permite incorporar el nivel exacto de control de usuario deseado y la visibilidad del sistema de cada encargado en el recinto. Mientras, Q-SYS Reflect Enterprise Manager le permite monitorear y administrar la integridad de su sistema desde cualquier lugar.
Una experiencia Q-SYS impecable
Los altavoces de rendimiento de la Serie PL son parte de la completa gama de productos Q-SYS
que ofrecen una experiencia integral de audio, video y control para todo el espacio, desde
auditorios o salones de conferencias hasta espacios deportivos y de artes escénicas.
SELECCIONE UN MODELO
Arreglo lineal
| PL-LA8 | PL-LA12 | |
| Enclosure Configuration: | Bass Reflex, two-way passive/bi-amp line array loudspeaker | |
|---|---|---|
| Tranducers: | LF: 8 in (200 mm), 2 in (50 mm) voice coil, neodymium magnet HF: Compression driver, 1 in (25 mm) exit, 1.75 in (44 mm) voice coil | LF: 12 in (320 mm), 2.5 in (64 mm) voice coil, neodymium magnet HF: 2x compression driver, 1 in (25 mm) exit, 1.75 in (44 mm) voice coil |
| Coverage (horizontal x vertical): | 100° x 15° | 90° x 15° |
| System bandwidth (-10 dB with EQ) | 61 Hz-20 kHz (no subwoofer) | 53 Hz-20 kHz (no subwoofer) |
| System Sensitivity | 101.2 dB @ 1 W/1 m | 102.3 dB @ 1 W/1 m |
| Max SPL* (continuous) | 132.5 dB @ 1 W/1 m | 132.5 dB @ 1 W/1 m |
| System Power Rating | 46 Vrms, continuous 250 W @ 8 Ω | 49 Vrms, continuous 300 W @ 8 Ω |
| Connectors | 2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles | |
| Recommended Amplifiers | Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 8K4 up to two (2) loudspeakers per channel on CX-Q 4K4 | |
| Rigging angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 | |
| Enclosure Material: | Impact-resistant ABS | |
| Enclosure Color: | Black (RAL 9011) | |
| Weatherization | IP54 Stainless screws UV and Corrosion treated grille Aluminum Rigging Hydrophobic Stainless Steel Mesh behind grille Input cup (IP65) sealing with gland | |
| Dimensions | 10.7 x 20.1 x 13.7 in (272 x 512 x 349 mm) | 15.4 x 24.4 x 15.8 in (392 x 620 x 381 mm) |
| Weight | 30 lb (13.5 kg) | 47 lbs (21.5 kg) |
| ||
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Fuente puntual
| PL-DC24 | PL-DC26 | PL-DC8 | PL-DC12 | |
| Tranducers: | LF: 2x 4 in (102 mm), 1.3 in (33 mm) voice coil, neodymium HF: Compression driver, 0.7 in (18 mm) exit, 1 in (25 mm) voice coil | LF: 2x 6 in (170 mm), 1.7 in (44 mm) voice coil, neodymium HF: Compression driver, 1 in (25 mm) exit, 1.75 in (44 mm) voice coil | LF: 8in (200 mm), 2 in (50 mm) voice coil, neodymium HF: Compression driver, 1in (25 mm) exit, 1.75in (44 mm) voice coil | LF: 12in (320 mm), 3 in (75 mm) voice coil, neodymium HF: Compression driver, 1.4in (36 mm) exit, 3 in (75 mm) voice coil |
|---|---|---|---|---|
| Enclosure Configuration: | Two-way, passive point source loudspaker in bass reflex enclosure | |||
| Coverage (horizontal x vertical): | 110° x 50° | Symmetrical: 120° x 50°, 90° x 50° Asymmetrical: 105° (60° + 45°) x 50° | Symmetrical: 90° x 50°, 70° x 50°, 110° x 50° Asymmetrical: 100° (55° + 45°) x 50°, 90° (55° + 45°) x 50° , 80° (45° + 35°) x 50° | |
| System Sensitivity | 97.3 dB @ 1 W/1 m | 102.2 dB @ 1 W/1 m | 99.3 dB @ 1 W/1 m | 102 dB @ 1 W/1 m |
| Max SPL* (continuous) | 114 dB | 121 dB | 118 dB | 124 dB |
| Enclosure Material: | Exterior plywood | |||
| Enclosure Color: | Black (RAL 9011) | |||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | |||
| Recommended Amplifiers | Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 4K4 up to two (2) loudspeakers per channel on CX-Q 2K4 | Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 8K4 up to three (3) loudspeakers per channel on CX-Q 4K4 up to two (2) loudspeakers per channel on CX-Q 2K4 | Q-SYS CX-Q Series 4ch network amplifiers up to four (4) loudspeakers per channel on CX-Q 8K4 up to three (2) loudspeakers per channel on CX-Q 4K4 | |
| ||||
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Subwoofer
| PL-SUB10 | PL-SUB12 | PL-SUB15 | PL-SUB18 | |
| Tranducers | LF: 10 in (250 mm), 3 in (75 mm) voice coil | LF: 12 in (300 mm), 3 in (75 mm) voice coil | LF: 15 in (380 mm), 4 in (100 mm) voice coil | LF: 18 in (460 mm), 4 in (100 mm) voice coil |
| Enclosure Configuration | Passive subwoofer in bass reflex enclosure | |||
| Coverage | Omnidirectional | Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units | ||
| System bandwidth (-10 dB with EQ) | 43-100 Hz Sub Crossover = 80 43-110 Hz Sub Crossover = 100 43-140 Hz Sub Crossover = 125 | 40-100 Hz Sub Crossover = 80 40-110 Hz Sub Crossover = 100 40-140 Hz Sub Crossover = 125 | 38-100 Hz Sub Crossover = 80 38-110 Hz Sub Crossover = 100 38-140 Hz Sub Crossover = 125 | 34-100 Hz Sub Crossover = 80 34-110 Hz Sub Crossover = 100 34-140 Hz Sub Crossover = 125 |
| System Sensitivity | 90 dB 1W/1m | 93 dB 1W/1 m | 97.5 dB 1 W/1m | 96 dB 1 W/1 m |
| Max SPL* (continuous) | 132 dB | 137 dB | 139 dB | 140 dB |
| Enclosure Material | Exterior plywood | |||
| Enclosure Color | Black (RAL 9011) | |||
| Connectors | 2x Speakon NL4 (cable connector not provided) 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles | |||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | |||
| Recommended Amplifiers | Q-SYS CX-Q 8K4 (up to 2 per ch) Q-SYS CX-Q 4K4 (up to 1 per ch) | Q-SYS CX-Q 8K4 (up to 1 per ch) | ||
| Dimensions | 10.8 x 16.7 x 20 in (275 x 425 x 510 mm) | 12.7 x 20.6 x 24 in (325 x 525 x 610 mm) | 14.7 x 23.5 x 27.1 in (375 x 598 x 690 mm) | 20.9 x 24.4 x 28.7 (531 x 620 x 730 mm) |
| Weight | 41.8 lb (18.96 kg) | 53.1 lb (24.1 kg) | 80 lb (36.3 kg) | 102.2 lb (46.3 kg) |
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
Coaxial
| PL-CA5 | PL-CA6 | PL-CA8 | PL-CA12 | PL-CA15 | |
| Enclosure Configuration | Two-way, full-range coaxial loudspeaker in bass reflex enclosure | ||||
| Tranducers | LF: 5 in (127mm), 1.5 in (38 mm) voice coil Coaxial tweeter: 1 in (25mm) voice coil | LF: 6 in (170 mm), 1.75 in (44.5 mm) voice coil Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil | LF: 8 in (200 mm), 2 in (50.8 mm) voice coil, neodymium Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil | LF: 12 in (320 mm), 3 in (72.6 mm) voice coil, neodymium Coaxial HF: compression driver, 3 in (76.2 mm) voice coil | LF: 15 in (380 mm), 3 in (72.6 mm) voice coil, neodymium Coaxial HF: compression driver, 3 in (76.2 mm) voice coil |
| Coverage | 115° conical DMT | 115° conical DMT | 110° conical DMT | 80° conical DMT | 80° conical DMT |
| System Bandwidth (-10 dB with EQ) | 76 Hz - 20 kHz (no subwoofer) | 61 Hz - 20 kHz (no subwoofer) | 59 Hz -20 kHz (no subwoofer) | 38 Hz -20 kHz (no subwoofer) | 37 Hz -20 kHz (no subwoofer) |
| System Sensitivity | 88 dB 1W/1m | 93 dB 1W/1m | 97 dB 1W/1m | 102 dB 1W/1m | 100 dB 1W/1m |
| Max SPL* (continuous) | 107 dB | 111 dB | 115 dB (passive) 116 dB (bi-amp) | 119 dB (passive) 120.5 dB (bi-amp) | 120 dB (passive) 122 dB (bi-amp) |
| Connectors | 1x Euroblock: Solid wire 14 AWG, 4 poles | 1x Euroblock: Solid wire 14 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles |
| Recommended Amplifiers | CX-Q 8K4 (up to 8 per ch) CX-Q 4K4 (up to 4 per ch) CX-Q 2K4 (up to 2 per ch) | CX-Q 8K4 (up to 4 per ch) CX-Q 4K4 (up to 3 per ch) CX-Q 2K4 (up to 2 per ch) | CX-Q 8K4 (up to 4 per ch) CX-Q 4K4 (up to 2 per ch) CX-Q 2K4 (up to 1 per ch) | CX-Q 8K4 (up to 2 per ch) CX-Q 4K4 (up to 1 per ch) | CX-Q 8K4 (up to 2 per ch) CX-Q 4K4 (up to 1 per ch) |
| Enclosure Material: | Exterior plywood | ||||
| Enclosure Color: | Black (RAL 9011) | ||||
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland | ||||
| Dimensions | 7.1 x 7.9 x 7.1 in (181 x 200 x 180 mm) | 12.5 x 8.7 x 7.1 in (316 x 220 x 180.5 mm) | 16.1 x 11 x 9.3 in (410 x 280 x 236 mm) | 23.5 x 15.7 x 13.8 in (597 x 400 x 350.4 mm) | 26 x 17.3 x 15.2 in (660 x 440x 386.5 mm) |
| Weight | 8.8 lb (4 kg) | 13.4 lb (6.1 kg) | 24 lb (10.9 kg) | 44 lb (20 kg) | 50.7 lb (23 kg) |
| Optional Accessories (sold separately) | PL-CA5-YM horizontal yoke mount PL-DC24-FM flush mount (ceiling or wall) | PL-CA6-YM horizontal yoke mount | PL-CA8-YM horizontal yoke mount | PL-CA12-YM horizontal yoke mount PL-CA12-SL Link to suspend PL-CA12 with PL-SUB15 | PL-CA15-YM horizontal yoke mount |
