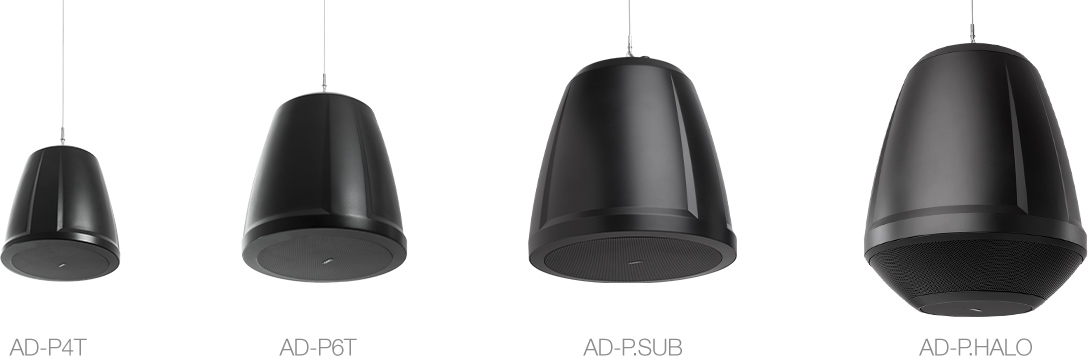

Serie AcousticDesign™ - Montaje colgante
Los altavoces de montaje colgante AcousticDesign™, son altavoces de 2 vías ideales para una amplia variedad de aplicaciones de refuerzo de sonido de primer plano y de fondo que utilizan configuraciones de bypass de 70 V/100 V o 16 Ω.
La serie AcousticDesign™ ofrece a los integradores una solución de sonido instalado de primera calidad donde el desempeño, la cobertura consistente y la estética son aspectos fundamentales. Específicamente diseñado para conservar una característica tonal uniforme en toda la gama en aplicaciones de techo, superficie y colgantes, la serie AcousticDesign permite a los integradores lograr transiciones perfectas dentro de instalaciones combinadas.
SELECCIONA UN MODELO
| AD-P4T | AD-P6T | |
| Systems Type | 2-way | 2-way |
|---|---|---|
| Frequency range, -10dB(Hz) | 65 - 20k Hz | 55 – 20k Hz |
| Nominal Coverage | 150° conical DMT | 135° conical DMT |
| Output (Peak SPL@1M) | 108 dB | 112 dB |
| Rated noise power1 | 30 | 60 |
| Sensitivity2 | 87.9 | 88 |
| LF Driver | 4.5 in (114 mm) | 6.5 in (165 mm) |
| HF Driver | 0.75 in (19 mm) | 0.75 in (19 mm) |
| Transformer Taps | 70 V : 30, 15, 7.5, 3.75 W and 16 Ω bypass 100 V : 30, 15, 7.5 W and 16 Ω bypass | 70 V : 60, 30, 15, 7.5 W and 16 Ω bypass 100 V : 60, 30, 15 W and 16 Ω bypass |
| Input Connectors | Euroblock connector with parallel output terminals | |
| Dimensions (H x W x D) in | 9.3 x 10.7 in | 11.3 x 12.7 in |
| Dimensions (H x W x D) mm | 237 x 272 mm | 287 x 323 mm |
| Net Weight | 6.5 lb (2.9 kg) | 9 lb (4.1 kg) |
| Details | Details | |
1 Continuous IEC specified test signal, 2hrs unless otherwise stated. | ||
All specifications are subject to change without notice.
AD-P.HALO
| AD-P.HALO | |
| Systems Type | Integrated SUB/SAT |
|---|---|
| Frequency range, -10dB(Hz) | 40 Hz - 20 kHz |
| Nominal Coverage | 110° conical |
| Output (Peak SPL@1M) | 111 dB |
| Rated noise power1 | 100 |
| Sensitivity2 | 86 |
| LF Driver | 6.5 in (165.1 mm) |
| HF Driver | 4 x 2.75 in (69.85 mm) |
| Transformer Taps | 70 V : 12.5, 25, 50, 100 100 V : 25, 50, 100 |
| Input Connectors | 4-pin male/female Euroblock with pass-thru and locking screws |
| Dimensions (H x W x D) in | 17.04 x 13.37 in |
| Dimensions (H x W x D) mm | 433 x 339.7 mm |
| Net Weight | 10.2 kg (22.5 lbs) |
| Details | |
1 Continuous IEC specified test signal, 2hrs unless otherwise stated. | |
All specifications are subject to change without notice.
Montaje colgante
| AD-P.SUB | AD-P.SAT | |
| Systems Type | Subwoofer | Satellite loudspeaker |
|---|---|---|
| Frequency Range, -10dB(Hz) | 55 Hz - 150 Hz | 150 Hz - 20 kHz |
| Nominal Coverage | N/A | 170° Conical |
| Output (Peak SPL @ 1M) | 106 dB | 96 dB |
| Rated noise power | 100 W | 25 W |
| Sensitivity | 86 dB | 82 dB |
| LF Driver | 6.5 in (165 mm) dual voice-coil | N/A |
| HF Driver | N/A | 2.75 in (70 mm) |
| Transformer Taps | 70V:100, 50, 25, 12.5W and 4 Ω bypass 100V:100, 50, 25W and 4 Ω bypass | 16 Ω |
| Connectors | Mono Input: 4-pole Euroblock with thru output Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites | 2-pole Euroblock |
| Dimensions (W x D) in | Ø13.6 x 13.8 | Ø4.3 x 4.5 |
| Dimensions (W x D) mm | Ø345 x 350 | Ø110 x 115 |
| Net Weight | 16.5 lb (7.5 kg) | .92 lb (0.43 kg) |
| Details | Details |
All specifications are subject to change without notice.
