SPA2-200

For higher power the SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 400 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a mono 70V or 100V output. Like the other SPA models, an 80Hz highpass filter is engaged when in 70V or 100V mode.



Certified for Microsoft Teams badge
Zoom Certified badge

Features

  • Up to 200 watts per channel into 4 and 8 ohms — the outputs of the SPA2-200 model are designed to provide up to 200 watts per channel into Low-Z loads.
  • ENERGY STAR® qualified amplifier — The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
  • Bridgeable outputs for higher power — Bridging the outputs of the SPA2-200 will deliver up to 350 watts into 70V or 100V when bridged.
  • Auto-Ramp provides quiet startup and power-down — The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
  • Rack-mountable 1U, half rack width enclosure — The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting
SPECIFICATIONS SPA2-60 SPA4-60 SPA2-200 SPA4-100
Stereo Mode Watts Per Channel
8 Ω dynamic, both channels driven 60 W 60 W 200 W 100 W
4 Ω dynamic, both channels driven 60 W 60 W 200 W 100 W
Bridged Mode Watts per channel
8 Ω & 4 Ω 200 W 100 W continuous 400 W 200 W

70 V & 100 V

 250 W 125 W 350 W 175 W*

Signal to Noise (A weighted, 20 Hz-20 kHz)

 >100 dB >100 dB >100 dB >100 dB

Input Sensitivity

 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu) 1.23 Vrms (+4 dBu)

Maximum Voltage Gain

 25.0 dB 25.0 dB 25.0 dB 25.0 dB

Ouput Circuitry

 Class D Class D Class D Class D

Frequency Response (20 Hz - 20 kHz)

 Frequency Response (20 Hz - 20 kHz)

Input Impedance

 >10 kΩ (balanced), >10 kΩ (unbalanced)

Maximum Input Level

  12.3V (+24 dBu)

Highpass Filter

 Switchable 80 Hz when Bridged in 70V & 100V

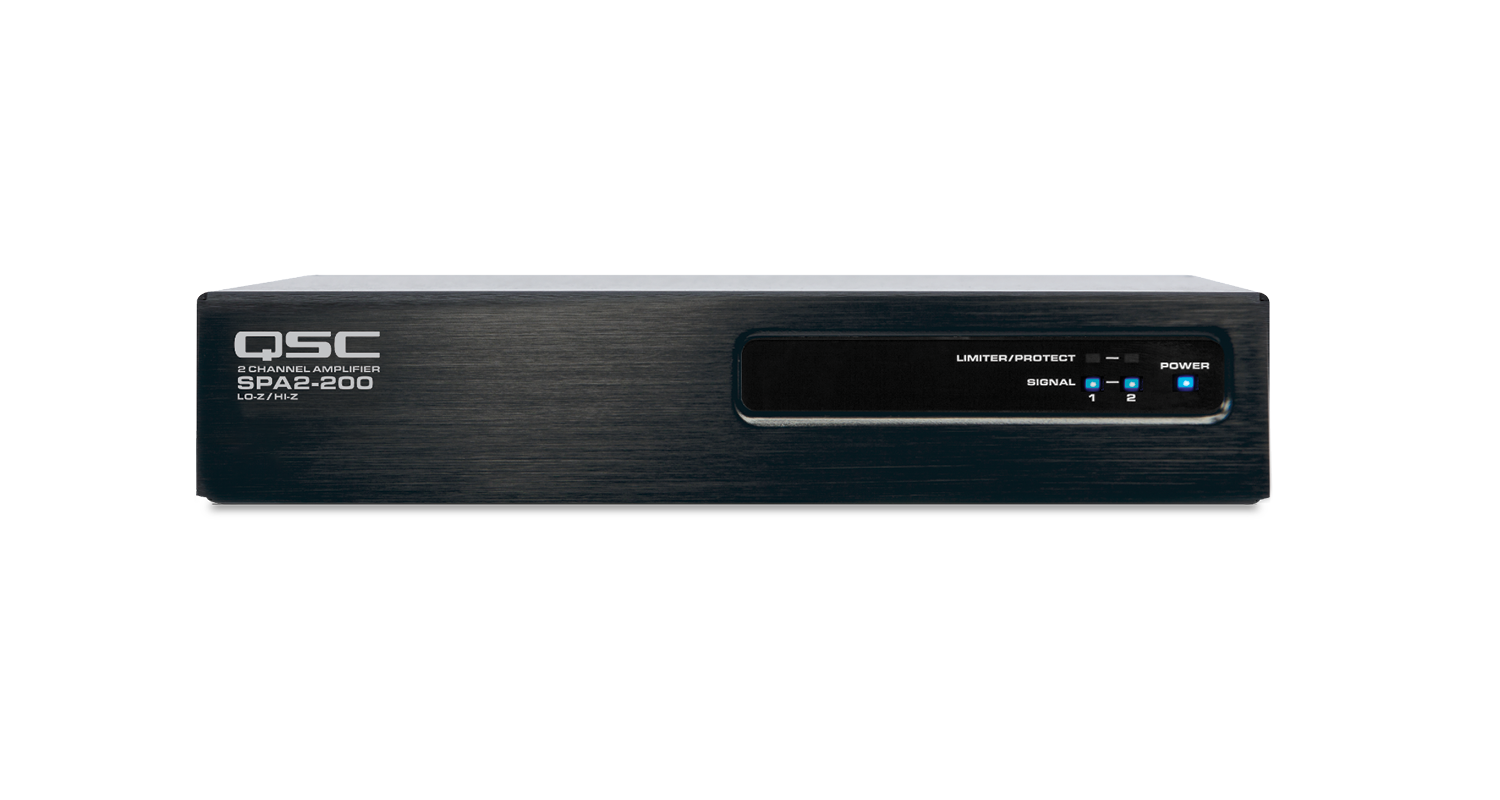

Front Panel Indicators

 Power, per channel Signal, per channel Protect/Limit

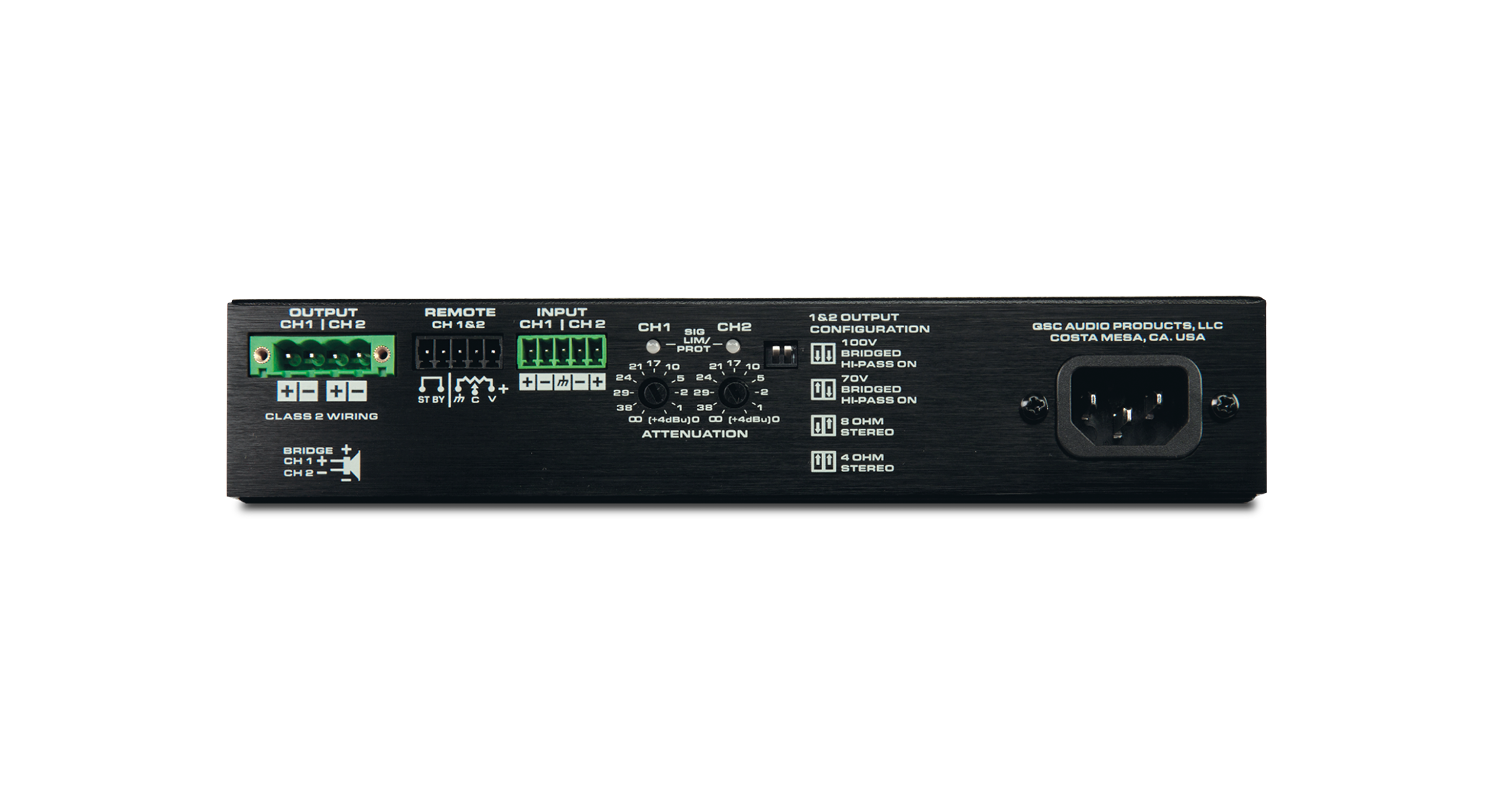

Controls

 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair

Dimensions (HWD) inches

 1.7 x 8.7 x 9.5 / 1RU

Dimensions (HWD) mm

 43 x 220 x 241 / 1RU

Weight (Net)

 3.5 lb / 1.6 kg 3.5 lb / 1.6 kg 4.0 lb / 1.4 kg 4.0 lb / 1.4 kg

Weight (Shipping)

 6 lb / 2.3 kg 6 lb / 2.3 kg 6.5 lb / 2.5 kg 6.5 lb / 2.5 kg

Agency Approvals

 UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit

Carton Contents

 Power cable, quick start guide, connector kit, rack mount ears, mounting brackets
*Peak Power 250 W


All specifications are subject to change without notice.
