Certified for Microsoft Teams Rooms

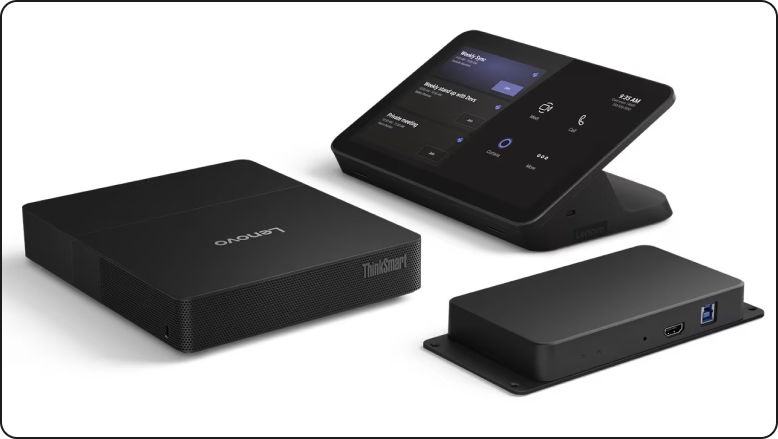

The Q-SYS UC Compute Bundle G2 for Microsoft Teams Rooms is a Certified for Teams solution that brings together Lenovo room compute solutions with Q-SYS audio, video, and control to provide a highly scalable and seamless user experience. It includes a Q-SYS UC Compute (Lenovo ThinkSmart Core Gen 2) which hosts Microsoft Teams Rooms, and a Q-SYS UC Controller (Lenovo 10.1-inch CAT-extended controller) that provides UC call control and AV room control on a single device.



Certified for Microsoft Teams

Choose from the largest portfolio of
Microsoft Teams Rooms certified devices

Design and optimize your Teams Rooms experience in high-impact spaces by choosing from a wide selection of
Teams-certified audio, video, and control solutions, including Q-SYS Partner devices.



Features & Benefits

  • Q-SYS UC Compute (Lenovo ThinkSmart Core Gen 2) to host Microsoft Teams Rooms
  • Q-SYS UC Controller (Lenovo 10.1-inch controller 1280x800) for UC call control and AV room control
  • Intel® Core™ Ultra 7 165H
  • 32 GB DDR5-5600MT/s (SODIMM)(2 x 16 GB)
  • Windows® 11 IoT Enterprise for Collaboration
  • Dual-NIC to separate the AV network from the corporate network
  • HDMI Ingest port
  • Integrated cable management

The Power of Partnerships: Q-SYS and Lenovo present an impressive Microsoft Teams Room solution, with best-in-class compute capabilities ready to connect to Q-SYS industry-leading Audio, Video and Control processing, providing customers with a single-vendor purchasing workflow to deliver an intuitive and scalable UC room system experience from the simplest of room types to any high-impact space.

Enabling Complete Microsoft Teams Rooms Solution: Optimize your Microsoft Teams Rooms experience with a complete room solution. The bundle includes a Lenovo compute and controller with the Q-SYS Control for Microsoft Teams Rooms application pre-installed, enabling simplified AV and call controls on a single device. With the largest selection of Microsoft Teams Rooms certified products, you can customize the solution to suit your needs, no matter the space.

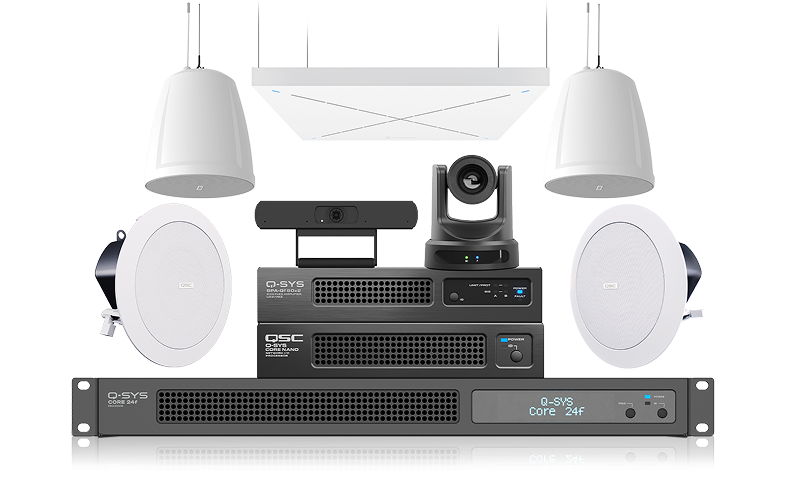

Holistic AV Experience: Q-SYS is a full stack audio, video and control platform that lets you deliver a holistic user experience in high-impact spaces. From room automation and automatic multi-camera switching to HDMI video distribution and beyond, Q-SYS is uniquely customizable to the needs of the space.

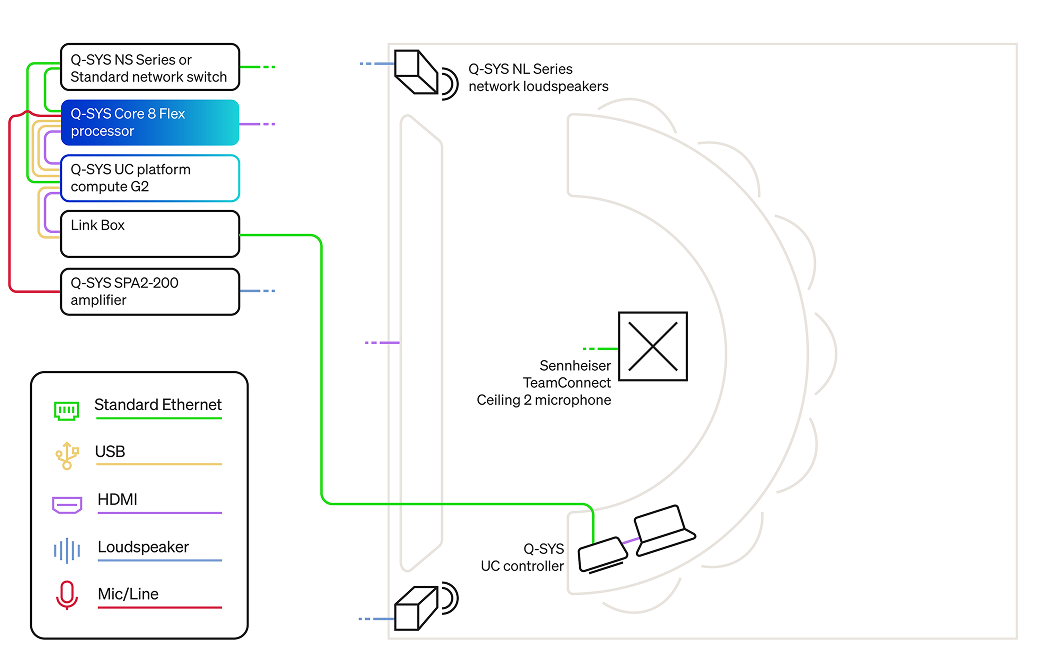

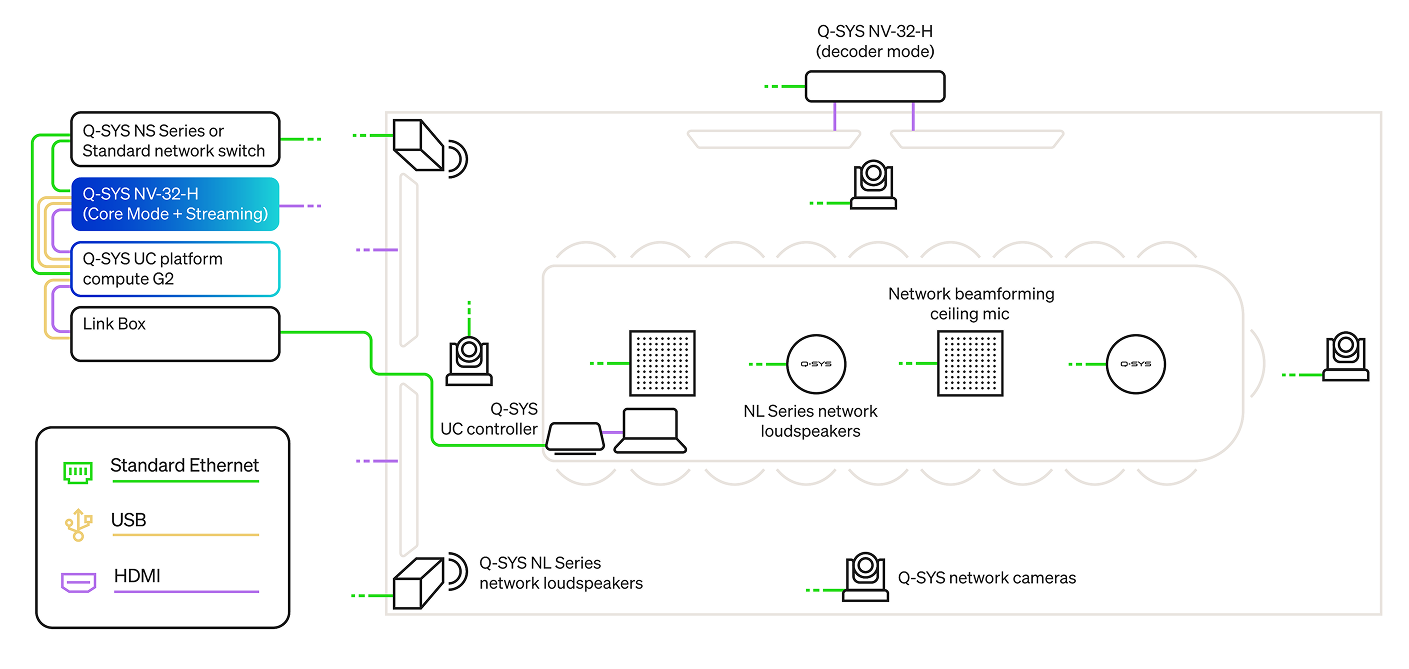

Application Diagram

Specifications

Q-SYS UC Compute Lenovo ThinkSmart® Core Gen 2
Processor Intel® Core™ Ultra 7 165H, vPro® Processor (E-cores up to 3.80 GHz P-cores up to 5.00 GHz)
Operating System Windows® 11 IoT Enterprise
Graphic card Integrated Intel® Arc™ Graphics
Memory 32 GB DDR5-5600MT/s (SODIMM)(2 x 16 GB)
Storage 256 GB SSD M.2 2280 PCIe Gen4 TLC Opal
Ports HDMI-in
3x USB-A (USB 5Gbps)
USB-A (Hi-Speed USB) for IP Controller
Power Connector
2x USB-C (USB 10Gbps)
2x HDMI-Out 2.1
Ethernet (RJ-45)
AC adapter / Power supply 45W / 170W
Wi-Fi Intel® Wi-Fi 6E AX211 2x2 AX vPro® & Bluetooth® 5.3
Q-SYS UC Controller Lenovo 10.1-inch CAT-extended controller
Display 10.1" (1280 x 800), 16:10 aspect ratio
Anti-Fingerprint; <360 nits
Ports 1x USB-C® (connect to compute unit, 10m USB-C® cable included)
1x 3.5mm headphone / mic combo jack
Link box ports 1x RJ-45 (provides power and data to controller via CAT-5e or greater cabling)
1x HDMI-out (connects to compute HDMI ingest)
1x USB-B (HID touch device, DisplayLink display device)
Compliance FCC Part 15B (USA)
CE marked (Europe)
UKCA (Great Britain)
UL and cUL listed (USA & Canada)
