AcousticDesign Series – SUB/SAT

Small-Format Loudspeakers

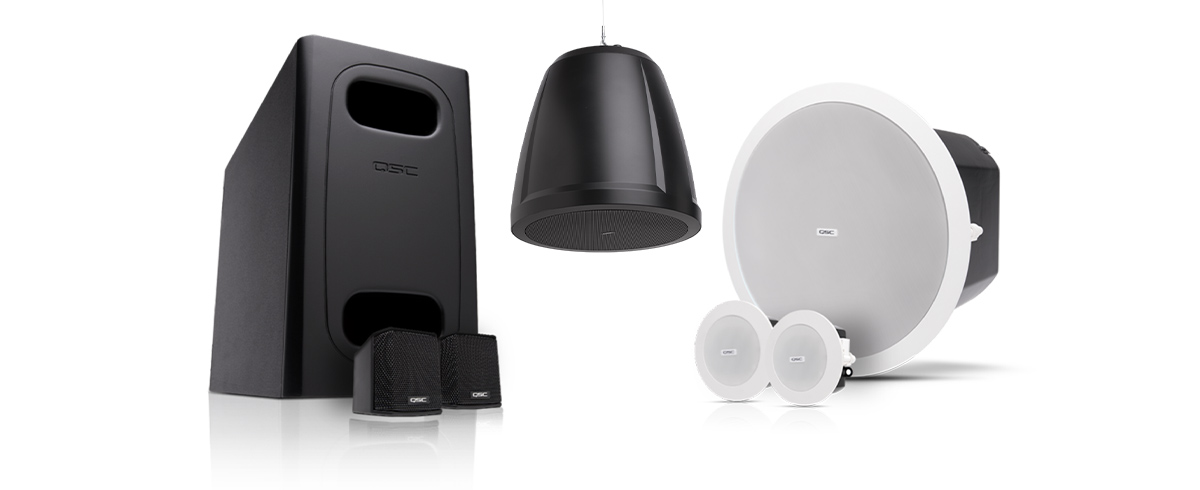

Hero group shot of the AcousticDesign Series family of loudspeakers

The AcousticDesign™ Series SUB/SAT Loudspeakers offer unprecedented acoustic performance from a small form factor to enhance the look of any installation. Backed by a legacy of quality and support, this family of loudspeakers supports retail, restaurant, hospitality and other commercial spaces.  Even at low volume levels, the AcousticDesign Series SUB/SAT loudspeakers provide exceptional warmth and crystal-clear highs for remarkable acoustic ambiance.

Certified for Microsoft Teams

Supports the aesthetics of demanding spaces with a small form factor. Available in black or white with paintable grills and enclosures.

One comprehensive catalog simplifies quoting and design process.

Minimize installation and commission labor costs with built-in high pass satellite outputs, screw-down Euro block connectors, snap-fit magnetic grills (for ceiling-mount and pendant-mount loudspeakers), and X-Mount wall-mounting system (for surface-mount models).

Subwoofers and satellite loudspeakers have the same balanced sonic characteristics that allow for interchangeability between enclosure types.

Sealed input panel covers, UV inhibitors, powder-coated aluminum grilles, rugged ABS enclosures (for AD surface-mount loudspeakers).

SELECT A MODEL

Surface-mount

  AD-S.SUB AD-S.SAT
Systems Type Subwoofer Satellite loudspeaker
Frequency Range,
-10dB(Hz)		 45 Hz - 150 Hz 150 Hz - 20 kHz
Nominal Coverage N/A 170° Conical
Output (Peak SPL @ 1M) 106 dB 96 dB
Rated noise power 100 W 25 W
Sensitivity 86 dB 82 dB
LF Driver 6.5 in (165 mm)
dual voice-coil		 N/A
HF Driver N/A 2.75 in (70 mm)
Transformer Taps 70 V : 100, 50, 25, 12.5 W and bypass
100 V : 100, 50, 25 W and bypass
Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo		 16 Ω
Connectors Hi-Pass Mono Input: 4-pole Euroblock with thru output
Low-Z Input: 4-pole Euroblock, Left (mono) and Right
Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites		 2-pole Euroblock
Dimensions
(H x W x D) inches		 13.8 x 8.2 x 17 3.6 x 3.5 x 5.4
Including wall bracket
Dimensions
(H x W x D) mm		 350 x 209 x 432 92.5 x 89 x 136
Including wall bracket
Net Weight 23.6 lb (10.7 kg) .95 lb (0.43 kg)
  Details Details

All specifications are subject to change without notice

Ceiling-mount

  AD-C.SUB AD-C.SAT
Systems Type Subwoofer Satellite loudspeaker
Frequency Range,
-10dB(Hz)		 45 Hz - 150 Hz 150 Hz - 20 kHz
Nominal Coverage N/A 170° Conical
Output (Peak SPL @ 1M) 106 dB 96 dB
Rated noise power  100 W 25 W
Sensitivity 86 dB 82 dB
LF Driver 6.5 in (165 mm)
dual voice-coil 		 N/A
HF Driver N/A 2.75 in (70 mm)
Transformer Taps 70 V : 100, 50, 25, 12.5 W and 4 Ω bypass
100V : 100, 50, 25 W and 4 Ω bypass		 16 Ω
Connectors Mono Input: 4-pole Euroblock with thru output
Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites		 2-pole Euroblock
Dimensions (W x D) inches Ø13.4 x 10 Ø5.9 x 3.4
Dimensions (W x D) mm Ø340 x 254 Ø150 x 86
Net Weight 19.2 lb (8.7 kg) 1.39 lb (0.6 kg)
  Details Details

All specifications are subject to change without notice

Pendant-mount

  AD-P.SUB AD-P.SAT
Systems Type Subwoofer Satellite loudspeaker
Frequency Range,
-10dB(Hz)		 55 Hz - 150 Hz 150 Hz - 20 kHz
Nominal Coverage N/A 170° Conical
Output (Peak SPL @ 1M) 106 dB 96 dB
Rated noise power 100 W 25 W
Sensitivity 86 dB 82 dB
LF Driver 6.5 in (165 mm)
dual voice-coil		 N/A
HF Driver N/A  2.75 in (70 mm)
Transformer Taps 70 V : 100, 50, 25, 12.5 W and 4 Ω bypass
100 V : 100, 50, 25 W and 4 Ω bypass		 16 Ω
Connectors Mono Input: 4-pole Euroblock with thru output
Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites		 2-pole Euroblock
Dimensions (W x D) inches Ø13.6 x 13.8 Ø4.3 x 4.5
Dimensions (W x D) mm Ø345 x 350 Ø110 x 115
Net Weight 16.5 lb (7.5 kg) .92 lb (0.43 kg)
  Details Details

All specifications are subject to change without notice.
